Design and Specifications

Design and Specifications

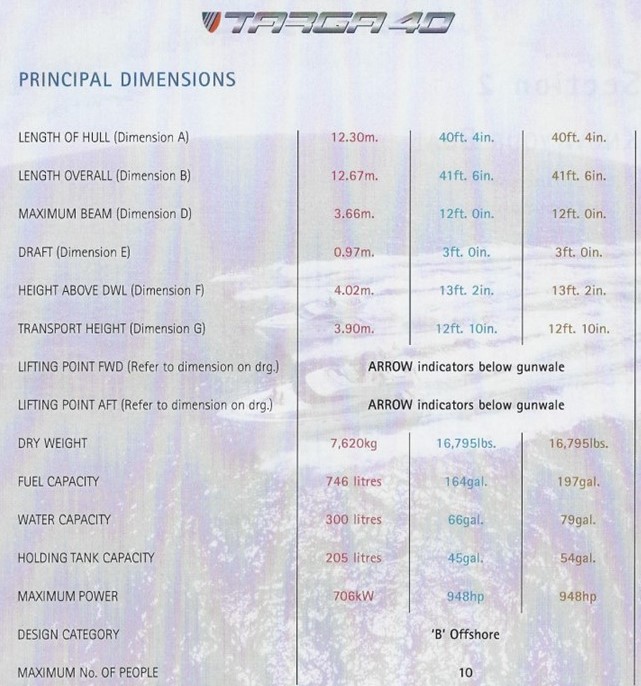

Some essential basics and variety of scanned images from my owners handbook.

  • LOA: 12.3m
  • Beam: 3.7m
  • Draft: 1.0m
  • Height above waterline: 4.0m
  • Fuel capacity: 2x 373L (746L)
  • Water capacity: 1x 300L
  • Holding tank: 1x200L (if fitted)
  • Tonnage: 7.5 ton (exc Water/Fuel additional ton)
  • Hull Designer: Bernard Olensinski

In production between 2000 and 2007 with engines installation options progressing from the Volvo KAD44 and KAD300 to Volvo D6s with the 310, 350 and the rarer 370hp increasing the top speed from low 30s to almost 40kts.

It is considered that 299 were built overall but there was no official 20th anniversary T40.

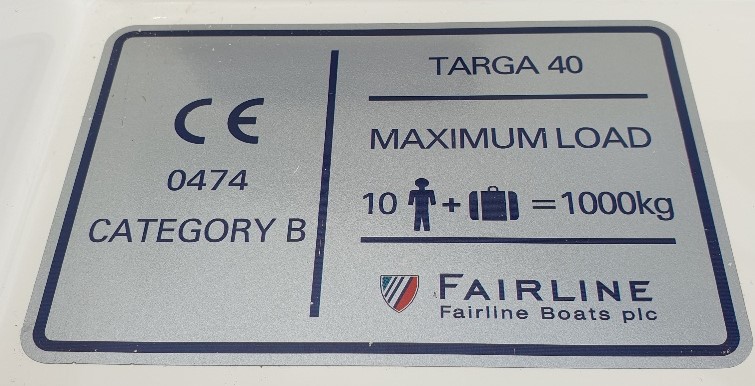

Category tag
The HIN (hull identification number) tag will be found in this locker under the sofa seat as well as on the transom (starboard side).

Check your HIN here

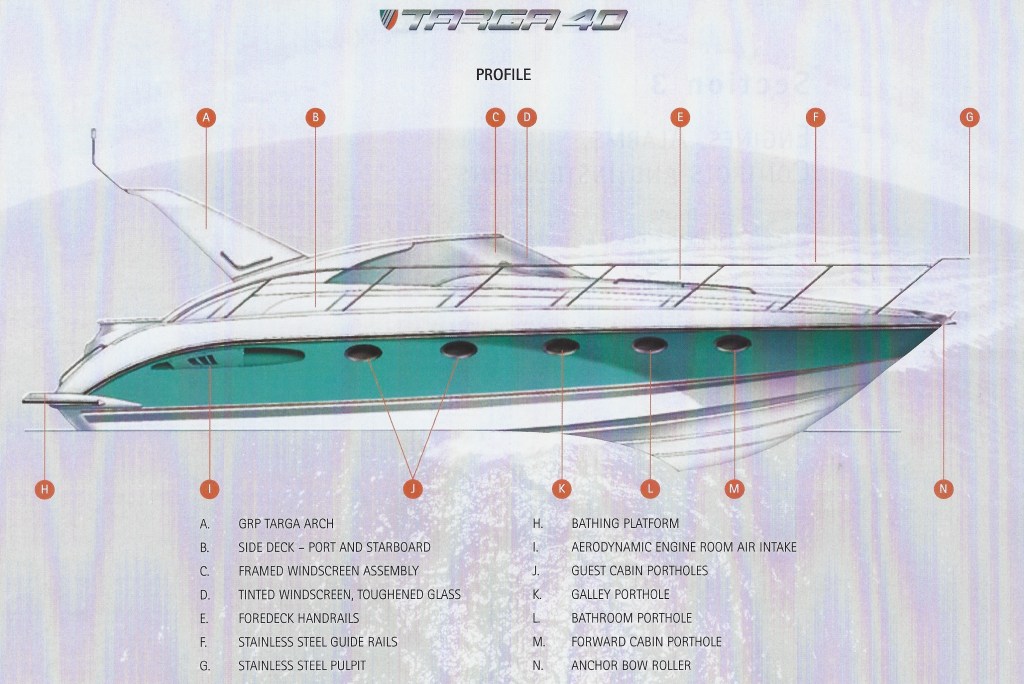

T40 Schematics

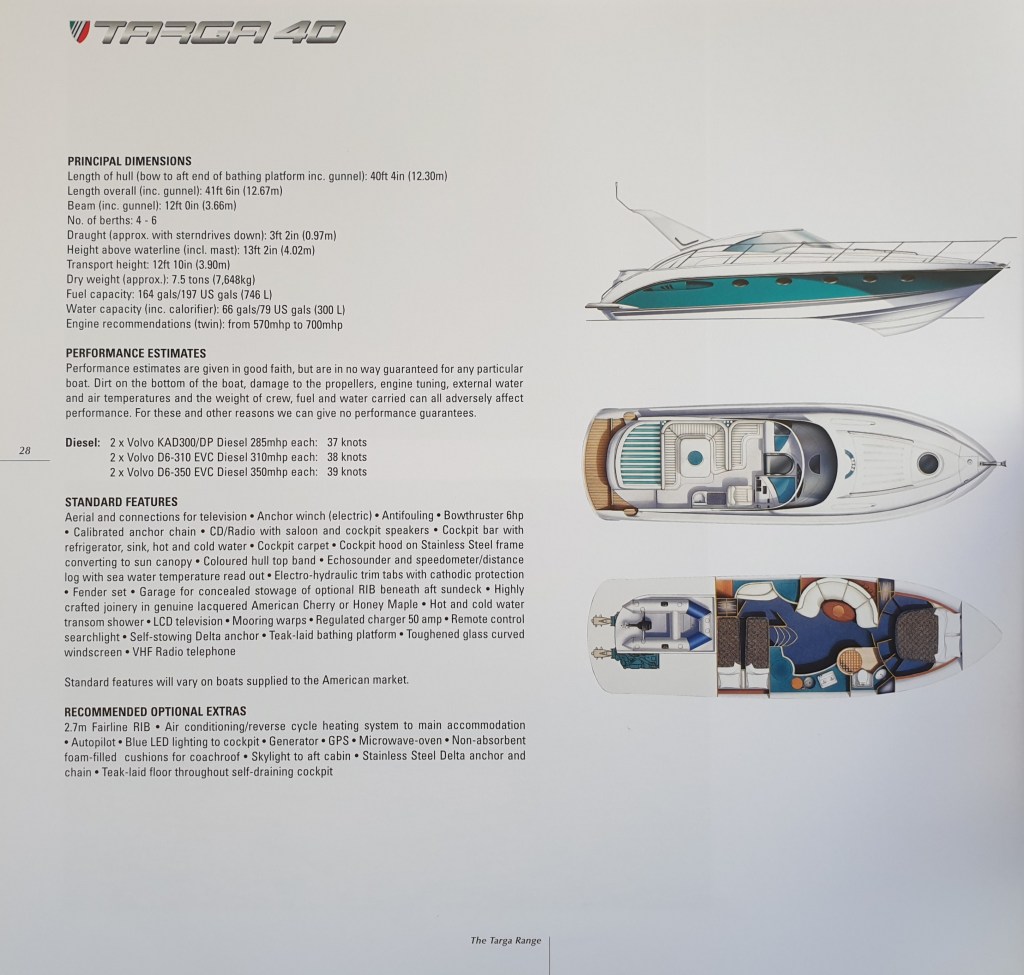

The above imaged is scanned from the book “Fairline – more than skin deep” published in 2004 by Fairline Boats PLC.
